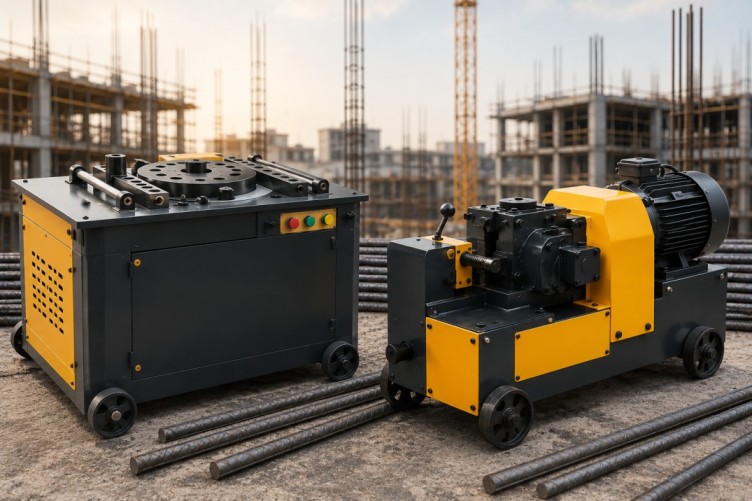

Steel Rebar Bending & Cutting Machine Guide Pune
High-tensile Thermo-Mechanically Treated (TMT) steel rebar forms the core tensile reinforcement for all Reinforced Cement Concrete (RCC) structures. Whether constructing high-rise residential towers, commercial basements, or highway flyovers in Pune and PCMC, steel rebar fabrication is one of the highest volume daily site activities.
Manually bending and cutting heavy TMT steel bars using manual hand keys and hand shears is slow, physically exhausting for labor, and frequently produces inaccurate bend angles that violate structural engineering drawings. Deploying automated bar bending machines and bar cutting machines eliminates human error, speeds up rebar fabrication by over 300%, and ensures compliance with Indian Standard IS 2502.
Manually bending and cutting heavy TMT steel bars using manual hand keys and hand shears is slow, physically exhausting for labor, and frequently produces inaccurate bend angles that violate structural engineering drawings. Deploying automated bar bending machines and bar cutting machines eliminates human error, speeds up rebar fabrication by over 300%, and ensures compliance with Indian Standard IS 2502.
Key Business Benefits for Rebar Contractors:
- 300% Faster Fabrication Output : Bend multiple 8mm/10mm stirrups or cut thick 32mm TMT bars in seconds.
- Exact IS 2502 Angle Compliance : Set exact 45°, 90°, 135°, and 180° bends for stirrups, column ties, and cranked bars.
- Reduced Material Scrap & Waste : Precision cutting eliminates uneven steel bar offcuts.
- Zero Operator Fatigue & High Safety : Hands-free foot pedal controls prevent lever slipping and hand crush injuries.
1. Bar Bending vs. Bar Cutting Machinery Specifications Table
Selecting the right machine depends on the maximum TMT bar diameter required by structural drawings. The table below outlines technical specifications for machinery supplied by Dhaneshwari:
|
Machine Model / Type
|
Max Bar Diameter
|
Motor Power (kW / HP)
|
Bending / Cutting Speed
|
Primary Application
|
GW40 Bar Bending Machine
|
6mm to 32mm TMT Bars
|
3 kW (4 HP) 3-Phase
|
25-30 Rpm (Dual Bending Speeds)
|
Beam cages, column ties, slab stirrups
|
|---|---|---|---|---|
|
GW50 Heavy Bar Bender
|
Up to 42mm TMT Bars
|
4 kW (5.5 HP) 3-Phase
|
20-25 Rpm Heavy Duty Drive
|
Bridge piers, pile foundations, raft footings
|
|
GQ40 Bar Cutting Machine
|
6mm to 32mm TMT Bars
|
3 kW (4 HP) 3-Phase
|
32 Cuts per Minute (Continuous)
|
High-volume rebar shearing yard
|
|
GQ50 Heavy Bar Cutter
|
Up to 40mm TMT Bars
|
4 kW (5.5 HP) 3-Phase
|
28 Cuts per Minute (High Torque)
|
Heavy infrastructure & commercial yards
|
2. Indian Standard Compliance (IS 2502 Rebar Bending Guidelines)
Structural consultants in Maharashtra inspect rebar cages according to IS 2502: 1963 (Code of Practice for Bending and Fixing of Bars for Concrete Reinforcement). Automatic bar bending machines help contractors maintain standard mandrel pin diameters:
- Stirrup & Column Tie Hooks (135° Bends) : IS 2502 mandates 135-degree seismic hooks with an extension of at least 10 times the bar diameter ($10d$). Automatic benders use specific central bending pins to achieve sharp 135° bends without cracking the steel outer rib.
- Cranked Bars in Slabs (45° Bends) : Tensile stress transfer requires precise 45-degree angle offsets. Digital angle setting dials ensure every crank bar is identical.
- Mandrel Diameter Rules : Minimum internal bend diameter for Grade Fe-500/Fe-550 TMT steel must equal $4d$ for bars $\le 25\text{mm}$ and $6d$ for bars $> 25\text{mm}$ to prevent internal steel micro-fractures.
3. Step-by-Step Operator Safety & Daily Servicing Protocol
To maintain peak performance and safeguard site personnel, enforce these mandatory daily operating steps:
- 3-Phase Voltage Check : Verify stable 415V electric power input. Low voltage causes motor overheating and switch contact burning.
- Gearbox Lubrication Check : Maintain clean SAE 90 gear oil levels in the main reduction gearbox.
- Blade Clearance & Rotation (Cutters) : Inspect shearing blades for chips. Rotate 4-edge cutting blades every 15 days to maintain sharp shear edges.
- Emergency Foot Pedal Release : Ensure the spring-return emergency foot pedal disengages immediately when released by the operator.
4. Related Formwork & Scaffolding Equipment Rentals
Once rebar cages are fabricated and placed, contractors require rigid shuttering systems. Explore our certified bar bending machine supplier options in Pune and bar cutting machine rentals. For formwork support, inspect our modular Cuplock scaffolding systems and heavy steel Shikanja clamps. Review safety compliance in our Scaffolding Load Calculations Guide and Equipment Maintenance Checklist.
Rent High-Performance Bar Bending & Cutting Machines in Pune
Dhaneshwari Electricals & Pump Services offers heavy-duty steel processing machines on flexible daily and monthly rental plans.
Get a Customized Rebar Machine Quote
Industrial bar bending machines handle TMT steel bars from 6mm up to 32mm, 40mm, and 42mm diameter with precise angle adjustment pins.
IS 2502 (Code of Practice for Bending and Fixing of Bars for Concrete Reinforcement) specifies standard mandrel diameters, bend radii, and hook allowances for structural steel bars in Indi
You can contact Dhaneshwari Electricals & Pump Services for electric hydraulic bar bending and cutting machine sales and rentals across Pune and PCMC.
